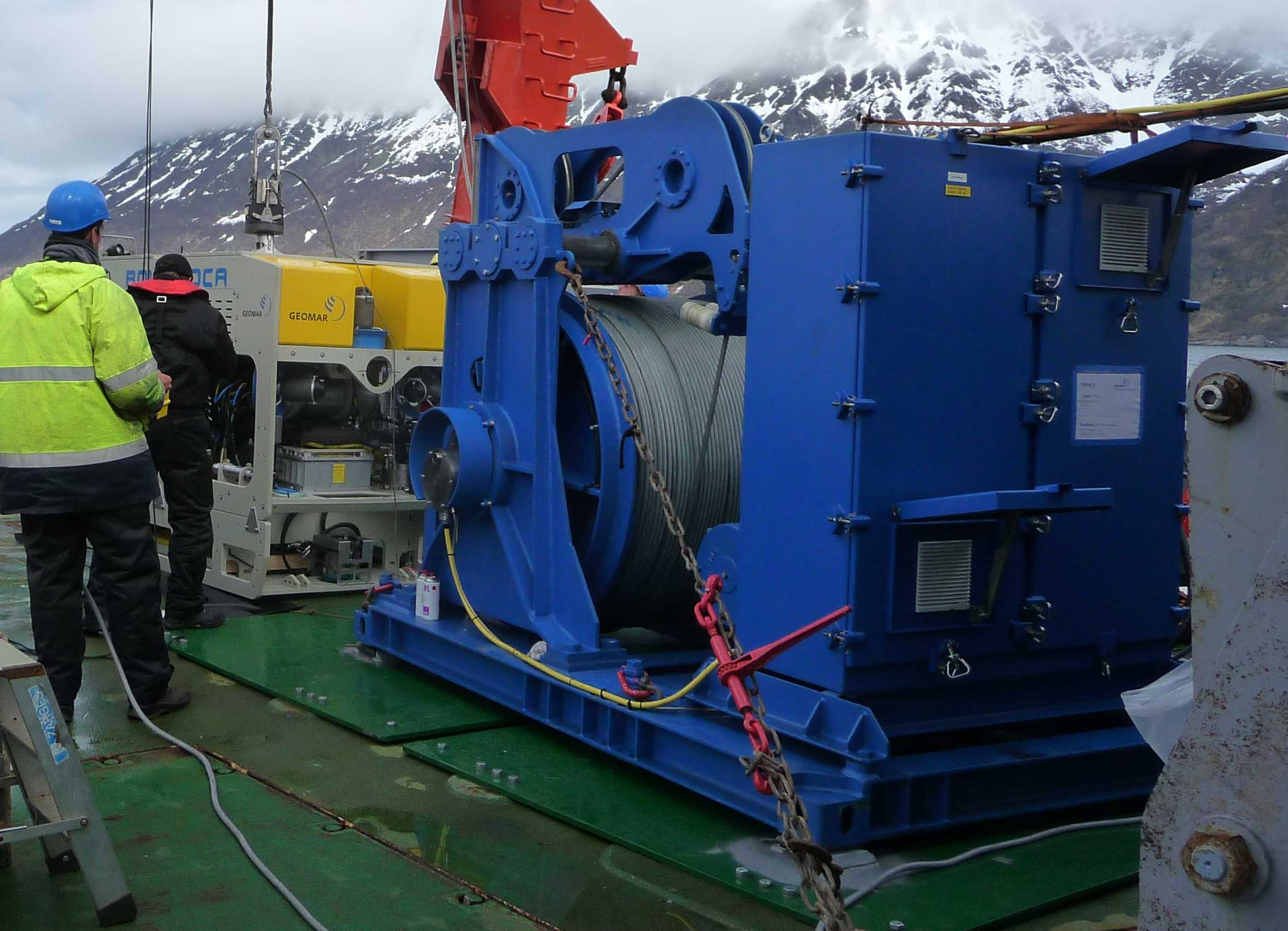

For deployments in water depth of up to 2300 m, a smaller winch may be alternatively employed with ROV KIEL 6000. This winch was originally purchased for ROV PHOCA which has an operational diving depth of 3000 m.
- manufacturer: Hatlapa GmbH
- 1 electric motor with 32 kW, 400 V/50-60 Hz (3 Ph.)
- electrical re-feeding unit
- autmatic spooling system with separate 2,5 kW motor
- cables with a bending radius of 450 mm may be used
- 2700 m ROV-deep sea cable (umbilical) (NSW GmbH)
- approx. 35 kN tractive force with 0-75 m/min
- breaking force: approx. 10 t
- slip ring (Ramert) with 3 optical fibres
- remotely controlled by cabled control unit
- winch is mounted ot 10' container footprint
- total weight: 10 t incl. cable
