AG01

Agulhas Nest at 1/10°

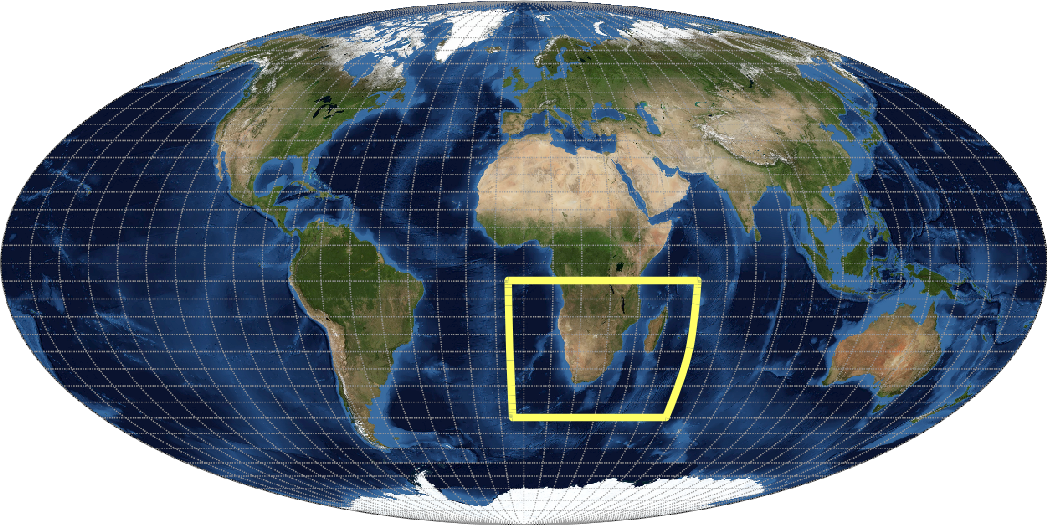

The focus of AG01 is on the ocean circulation around and near the southern tip of South Africa, especially the Agulhas system and its sources and extensions. To resolve mesoscale processes in this region adequately, a 1/10° AGRIF nest is embedded in a global ocean model at 1/2° (ORCA05). The successor configuration, which covers a larger region, is INALT01.

Person in charge:Arne Biastoch

Characteristics

Global

  • NEMO ocean
  • LIM2 sea ice (elastic-viscous rheology)
  • Tripolar ORCA grid
  • Total Grid Points: 37 Mill

Host:

Nest

  • Grid Points: 909 x 474 x 46
  • Typical Grid Point Distance: ~9 km
  • Time Step: 540s

Simulations

The series of simulations with this configuration were completed in 2011.

  • Climatological control run
  • Hindcast reference experiment (1958-2004)
  • Several sensitivity experiments, e.g. with wind changes

HPC:

Simulations and numerical experiments with this configuration are mostly done using high performance computing facilities at HLRS.

Data

Data is available only internally. For data requests from outside GEOMAR, please contact the Model and Data Management (see right column).

Projects

  • DFG Agulhas
